- Product use
This series of products are mainly used in drying, sterilizing and heat removing sources of heat-resistant articles such as cillin bottles, aluminium caps, metals and glassware in pharmaceutical industry.
Working principle
Put the drying tray, bottle or car filled with material into the box and start the PLC programmable control system. The inner circulation fan works, heating, butterfly valve opens at the same time, and the drying box is heated rapidly.Under the action of an internal circulation fan, hot air enters the box through a high temperature resistant and efficient filter. Under the action of a microporous regulating plate, a uniform distribution of air is formed to transfer to the box. Dry air absorbs water from the surface of bottles (materials and articles), enters the heating passage for evaporation and exhaust, and dried air flows in a directional circulation under the action of a fan, and water vapor is discharged.With the gradual reduction of water vapor and the intermittent supplement of fresh filtered air, the chamber is in a slightly positive pressure state, the constant temperature is over, and the process control is completed.Open air supply or forced cooling, automatic butterfly valve into closed state, sound and light prompt to open the door and exit the bottle.
Structural characteristics
The 316L stainless steel imported is used in all parts of the chamber which may be in contact with the objects.
The exterior surface is imported 304 stainless steel material, using a new production process, which meets GMP requirements and makes the appearance more concise and beautiful.
Unique heat insulation method to ensure product appearance temperature less than 40 C
The inner chamber adopts TIG sealed welding mode, and the inner chamber has a four-corner arc transition structure. It has no dead angle and is easy to clean.
DMH Series Clean Door Oven, Advanced and Sensitive Control System, PLC Man-machine Interface Touch Screen, Micro Pressure Differential Meter, Automatic Dehumidification Valve and Flammable Gas Concentration Tester for Special Environment are all made in Japan, USA and Taiwan, China.The quality of the oven is guaranteed.Perfect 100-level laminar flow purification system meets the requirements of "GPM" specification.
Matching equipment
Bacterial Detection of Temperature Module Detector of Particle Number Detector
- Product use
Product model Cavity size (mm) Profile size (mm) heating power
(kw)Maximum variable frequency regulation of circulating air volume
(m /h)Supplementary Air Volume Variable Frequency Regulation Maximum
(m /h)Consumption of cooling water
(kg/lot)wide deep high wide deep high DMH-1 600 500 750 1700 850 1950 9 2000 426 150 DMH-2 800 800 1000 1900 1150 2100 15 2500 426 180 DMH-2A 900 900 1250 2100 1250 2300 19 2800 426 180 DMH-3 1000 1000 1200 2100 1350 2300 22 3800 504 200 DMH-3A 1000 1000 1500 2100 1350 2600 25 3800 504 220 DMH-4 1000 1200 1500 2100 1550 2600 28 4000 504 250 DMH-5 1000 1400 1450 2100 1750 2550 30 5000 504 300 DMH-5A 1000 1800 1400 2100 2150 2500 40 5600 702 350 DMH-6 1000 2150 1400 2100 2500 2600 45 6500 702 400 DMH-6A 1000 2500 1400 2100 2850 2500 50 7500 702 450 DMH-7 1100 2300 1600 2200 2650 2700 55 8000 702 550 DMH-8 2000 1800 1400 3100 2150 2500 70 8500 870 750 DMH-9 2000 2000 1500 3100 2350 2600 75 8500 870 850 DMH-10 2000 2650 1500 3100 3000 2600 90 11400 870 1000 DMH-11 2500 2650 1500 3600 3000 2600 110 15200 870 1150 DMH-12 2500 3000 1600 3600 3350 2700 130 15200 870 1350

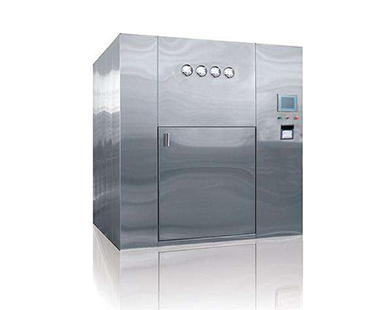

DMH Dry-heat Sterilization Oven (General Type)
technical parameterModel specification DMH-1 DMH-2 DMH-3 DMH-4 Workshop Dimension Width x Depth x High (mm) 600x500x750 800x800x1000 1000x1000x1200 1000x1200x1500 Exterior dimension width x depth x height (mm) 1650x800x1750 1880x1100x1950 2050x1300x2150 2050x1500x2450 Heating Power (Kw) 9 15 21 28 Power of Circulating Fan (Kw) 1.1 2.2 3 4 Supplementary fan power (Kw) 0.06 0.18 0.18 0.25 Power of dehumidifying fan (Kw) 0.18 0.25 0.37 0.75 Design Temperature Range (?) Room temperature ~260 Cleanliness grade 100level - ·
Dry sterilization series
Dry heat sterilization oven
